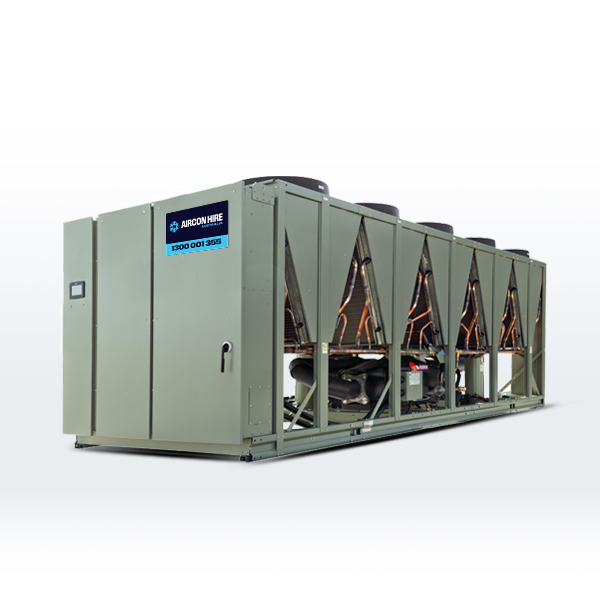

530kW Air Cooled Chiller

The 530kW Air Cooled Chiller is engineered for large-scale temporary cooling applications where dependable performance is critical. Built to handle demanding commercial and industrial environments, the system delivers high-volume chilled water flow rates up to 43 L/s while operating efficiently across a broad range of site conditions.

Overview

Cooling Capacity
kW
Heating Capacity
N/A
Cooling Capacity
530
kW
Heating Capacity
N/A
Size
5800 x 2200 x 2400
Flow Rate / Volume
11.8 - 43 L/s

Specifications

Dimensions (LxWxH)
5800 x 2200 x 2400
Weight (kg)
4600kg
Flow Rate / Volume
11.8 - 43 L/s
Operating current (A)
356A / 356A / 356A
Power supply
415V / 3P / 50Hz
Connection size
356A 3P Fixed wired connection
Sound pressure level (dB(A))
82 DB
Outlet temperature
6c -15c
Operating conditions
0c - 46c
Tank capacity
N/A
